Stage: ready

Description:

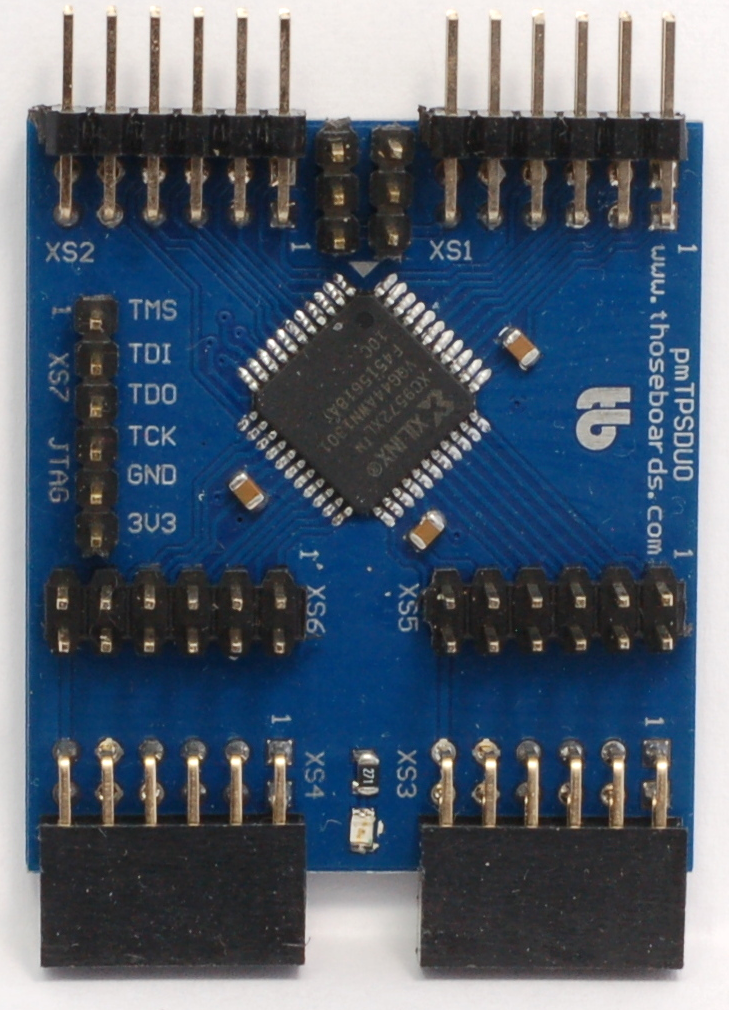

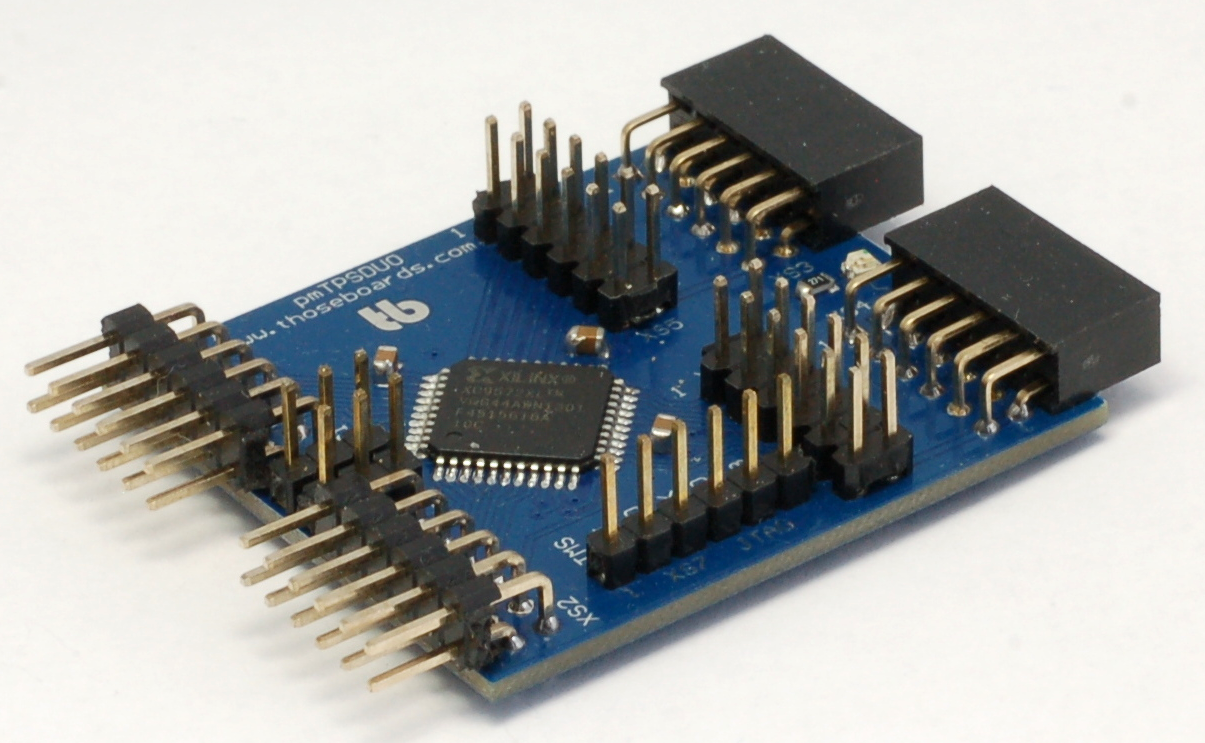

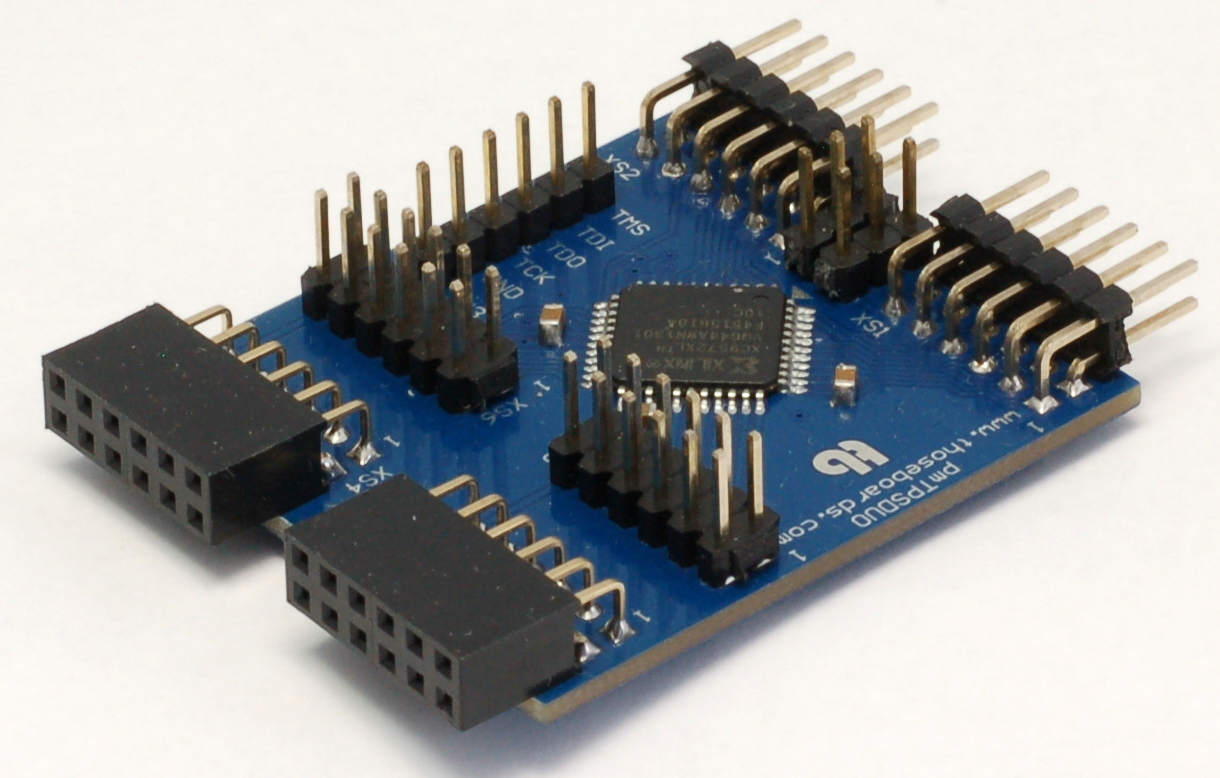

pmTPSDUO is a clockless PMOD(TM) interface compatible module.

pmTPSDUO provides configurable signals routing between available PMOD(TM) ports.

pmTPSDUO is easy configurable for UART/SPI/GPIO signal routing.

Features:

• low capacity CPLD based non-volatile signal routing configuration
• up to 5V signal IO pins tolerant
• JTAG header for configuration upload
• standard VHDL/Verilog configurable signal routing
• 6 PMOD(TM) interface ports

Documentation:

View assembly in PDF

View schematic in PDF

Assembly chains with this board

Also, see examples
